Cooling Systems and Pain Control in Aesthetic Laser Treatments (2026)
Cooling in aesthetic laser work is a safety mechanism first and a comfort feature second. By pre-cooling the epidermis you raise the threshold at which it is injured, which lets you deliver higher follicular or dermal energy with an unchanged safety margin. The three dominant methods are contact cooling (sapphire or metal tip, typically 0–5 °C), cryogen spray, and forced cold air, supplemented by topical anaesthesia for more painful modalities. Correctly applied, cooling is often the difference between a protocol that achieves clinical endpoints and one that has to be under-dosed because the patient cannot tolerate it.
Why Cooling Is a Safety System
Energy devices heat a target chromophore — melanin, haemoglobin, water. The problem is that the epidermis contains melanin and water too, so it is heated as collateral. Cooling lowers the baseline epidermal temperature and extracts heat during and after the pulse, widening the gap between:
- the energy required to damage the target, and
- the energy at which the epidermis is injured.
That gap is your therapeutic window. Without cooling, operators compensate by lowering fluence — which is why under-cooled protocols so often produce disappointing results rather than fewer complications.
Cooling Modalities Compared
| Method | Mechanism | Typical operating point | Strengths | Limitations |
|---|---|---|---|---|

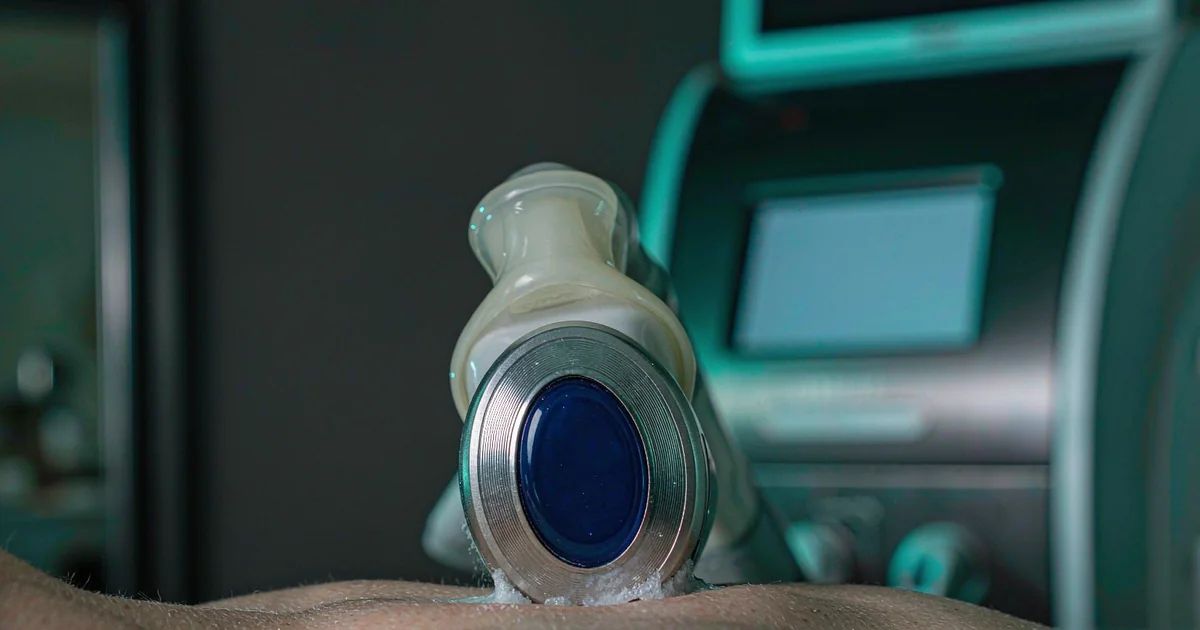

| Contact (sapphire / metal) | Conductive heat extraction through a chilled tip held on skin | 0–5 °C tip temperature | Consistent, measurable, no consumable; protects before, during and after the pulse | Requires firm, consistent contact; operator dependent |
| Cryogen spray | Short burst of cryogen evaporating on the surface | Millisecond bursts timed to the pulse | Very rapid cooling; no contact pressure needed | Consumable cost; timing must be synchronised; over-spray risks frost injury |
| Forced cold air | Chilled air blown across the field | Down to approximately −30 °C | Non-contact; useful over irregular contours and large fields | Less precise than contact; noisy; slower heat extraction |
| Topical anaesthesia | Lidocaine-based cream under occlusion | 30–60 min occlusion pre-treatment | Strong pain reduction for ablative and deep heating | Delay; systemic absorption risk over large areas; does not protect tissue |
| Ice / gel packs | Conductive post-treatment cooling | Applied post-pulse | Zero cost; effective post-pulse soothing | Manual; inconsistent temperature; post-hoc only |
Key distinction: topical anaesthesia reduces pain but provides no tissue protection. Only active cooling widens the therapeutic window. Substituting anaesthetic for cooling is a common and consequential error.
The Pre-, Parallel-, Post-Cooling Sequence
- Pre-cooling — lowers epidermal baseline temperature before the pulse. Most effective with contact devices held in place for a second or two before firing.
- Parallel (simultaneous) cooling — extracts heat during the pulse. This is the most protective phase and the main advantage of integrated contact tips and synchronised cryogen.
- Post-cooling — removes residual heat after the pulse, limiting the duration of thermal exposure and reducing oedema and discomfort.
Systems that deliver all three outperform those that deliver only one. When evaluating a device, ask specifically whether cooling is continuous or pulse-gated.
Pain Profile by Modality
| Modality | Typical sensation | Usual requirement |
|---|---|---|
| Diode 808 nm hair removal with contact cooling | Mild to moderate, brief | Integrated contact cooling usually sufficient |
| Alexandrite 755 nm hair removal | Moderate, sharp | Contact or cryogen cooling; cold air as adjunct |
| Nd:YAG 1064 nm hair removal | Moderate to high (higher fluence required) | Aggressive cooling essential; consider topical anaesthetic |
| IPL | Moderate, rubber-band snap | Contact cooling plus cold gel |
| Fractional ablative resurfacing | High | Topical anaesthetic plus active cooling |
| HIFU / focused ultrasound | Deep, aching; varies by transducer depth | Topical anaesthetic; manage expectation; consider analgesia per protocol |
| RF microneedling | Moderate to high | Occluded topical anaesthetic; post-treatment cooling |
Parameter Drivers of Pain
Pain is not arbitrary — it tracks parameters predictably. Knowing which lever is causing the sensation lets you reduce it without abandoning the protocol:
- Fluence ↑ → pain ↑ (most significant driver)
- Pulse duration ↓ → pain ↑ (rapid heating is felt more sharply)
- Spot size ↓ → pain ↑ (more superficial energy concentration)
- Pulse stacking → pain ↑ (cumulative heat with inadequate cooling interval)
- Anatomical site → bony prominences, perioral and periocular areas, and the upper lip are consistently more sensitive
The practical fix is usually to lengthen pulse duration slightly and improve cooling rather than to drop fluence — preserving efficacy while improving tolerance.
A Practical Pain-Management Ladder
- Optimise cooling first — verify the tip is at temperature, maintain firm contact, and do not rush pre-cooling.
- Adjust parameters second — longer pulse, larger spot, adequate pulse interval.
- Topical anaesthesia third — occluded for 30–60 minutes for ablative, RF microneedling and deep heating protocols, respecting total body-surface-area limits.
- Behavioural techniques — vibration devices, cold air, breathing cues and clear countdown reduce perceived pain materially at zero clinical cost.
- Split the field — for large areas, treating across two sessions is sometimes better tolerated than one long session.
Safety Cautions
- Avoid excessive cryogen — over-spray on the same spot can cause frost injury, particularly in darker skin.
- Respect topical anaesthetic limits — large-area application raises systemic lidocaine exposure. Follow maximum dose by body weight and avoid combining multiple anaesthetic products in one session.
- Do not cool so aggressively that the endpoint is masked. Over-cooling can blunt the visual erythema you rely on to judge adequate treatment.
- Verify cooling before every session. A contact tip that has lost refrigerant or a failing thermoelectric module looks identical to a working one until a patient is burned.
Related reading
Frequently asked questions
Does laser cooling reduce effectiveness?
No — correctly applied cooling improves efficacy by protecting the epidermis, which allows clinically effective fluence to be delivered safely. Problems arise only from over-cooling that masks the treatment endpoint or from cryogen over-spray causing frost injury.
Is contact cooling better than cryogen spray?
Contact cooling provides continuous pre-, parallel and post-pulse protection with no consumable cost, making it the default for large-volume hair removal. Cryogen spray cools faster and needs no contact pressure, suiting irregular contours, but adds consumable cost and requires precise pulse synchronisation.
Does numbing cream protect the skin during laser?
No. Topical anaesthetic reduces pain perception but provides no tissue protection. Only active cooling lowers epidermal temperature and widens the safety margin, so anaesthetic should never be used as a substitute for cooling.
Why is Nd:YAG 1064 nm more painful than diode 808 nm?
1064 nm is less strongly absorbed by melanin, so higher fluence is required to reach the therapeutic threshold, and more total energy delivered means more sensation. Aggressive contact cooling and, in some protocols, topical anaesthesia are therefore more important.
How can pain be reduced without lowering results?
Lengthen pulse duration slightly, use a larger spot size, ensure firm continuous contact cooling with adequate pre-cooling, allow sufficient interval between pulses, and use vibration or cold-air distraction. These preserve efficacy better than simply reducing fluence.
References
- Expert Consensus on Clinical Application of Laser Hair Removal
- Clinical Guideline on Non-Ablative Laser Skin Rejuvenation Technology
